SIMRIG SBM and harness on a rig, seen from above

SIMRIG SR3 + SBM bundle

Feel the rig move. Feel the belt pull.

A four-actuator motion system and an active belt tensioner, driven by the same software from the same telemetry. One in-game event, one motion cue.

Upcoming product

SR3 motion system + SBM belt tensioner

€ 5 350.00inc. VAT (25 %) · Sweden

€ 7 250.00 Save € 1 900.00

14-day returns · 3-year guarantee · UPS or DHL Express

3-year guaranteeOn both systems
Assembled in SwedenTested and checked before it ships
One softwareSIMRIG Control Center runs both
To your doorDHL Express or UPS, scheduled by you

SR3 + SBM bundle

More of the car,
through your whole body.

SR3 creates movement through the complete rig. The SBM adds dynamic force through the harness.

Instead of asking motion alone to communicate everything, the two systems work together to reproduce both movement and physical load.

250 kgSR3 moving-mass capacity
70 mmMotion travel
30 kg × 2Peak belt pull, independently controlled
150 mmLinear belt travel

Better together

One telemetry stream. Two systems.

The SR3 pitches, heaves and rolls your entire rig. The SBM pulls the harness against your shoulders under braking, acceleration and cornering. Both are controlled by the same software, by the same algorithms, at the same time.

By processing the game telemetry once, for both systems, a single in-game event translates to a single motion cue in the real world. No delays, no disconnect.

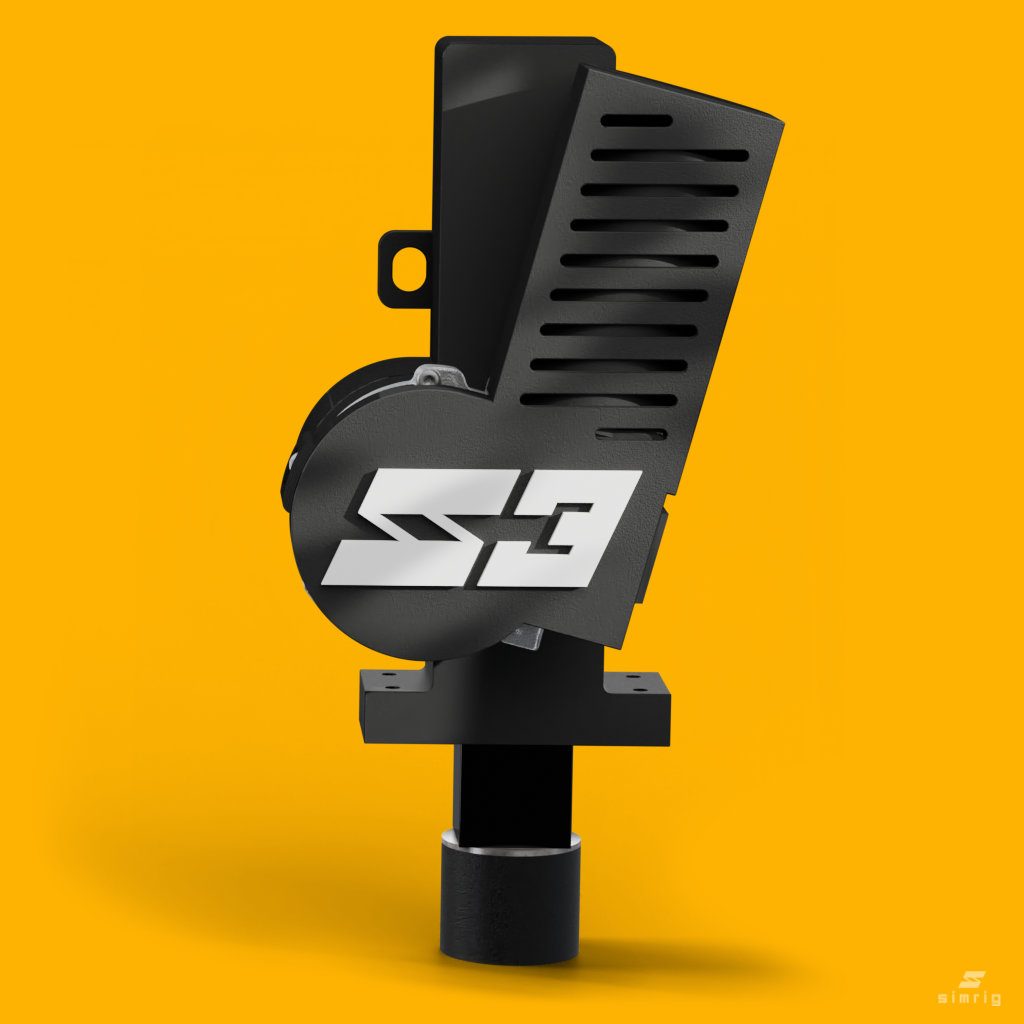

A SIMRIG SR3 actuator on a yellow background

SIMRIG SR3

Moves your entire rig.

Four actuators, one per corner, pitch, heave and roll your setup. Immediate response to curbs and changes in car acceleration.

  • 3-DOF — heave, pitch and roll
  • 250 kg maximum moving load
  • 70 mm of travel, 100+ updates a second
About the SR3 € 5 187.50 separately
The SIMRIG SBM belt tensioner seen from above on a yellow background

SIMRIG SBM

Pulls you into the seat.

An active belt tensioner that tightens the harness under braking, acceleration and cornering. Left and right are driven independently.

  • Two independent channels
  • Up to 30 kg of force per side
  • Five-point harness included
About the SBM € 2 062.50 separately

SIMRIG Control Center

One app runs both.

SIMRIG Control Center connects to the game, extracts the telemetry, and computes how to move the motion system and the belt tensioner — again and again, more than 100 times a second.

It detects the running game, loads the right profile, and supports 60+ titles including iRacing, Assetto Corsa EVO, Le Mans Ultimate and F1 25.

01

One read

Telemetry is extracted from the game once.

02

One model

The same algorithms compute cues for both systems at the same time.

03

Two outputs

Rig motion and belt tension arrive together, over 100 times per second.

Compatibility

Both bolt onto your existing rig.

The SR3 mounts under the four corners of standard aluminium rigs such as 40×80, 40×120 and 40×160, using 20×20 profiles or EasyBrackets. Conversion kits are available for select tubular rigs.

The SBM attaches to the same aluminium extrusion rig, either on top of the rear profile or in one of the side slots. It moves with the rig, so the harness stays aligned as the SR3 pitches and rolls.

What's in the boxes

Everything required for both systems.

SIMRIG SR3

4xSIMRIG SR3 Linear Actuator
1xSIMRIG SR3 Electronic Control Unit
1x1000W Power Supply (100-240 V at 50-60 Hz)
1xEmergency Stop
4xLinear Actuator Cable (1m)
1xPower Cable for ECU (2m)
1xPower Cable (C13)
1xUSB Cable (3m)
1xSIMRIG Control Center (download)
—Assorted screws and T-nuts

SIMRIG SBM

1xSIMRIG SBM - Belt Tensioner
1xFive Point Harness (black, 2 inch wide)
1x120W Power Supply (100-240 V at 50-60 Hz)
1xEmergency Stop
1xEmergency Stop Link Cable
1xPower Cable (C13)
1xUSB Cable (3m)
1xSIMRIG Control Center (download)
—Assorted screws and T-nuts

Technical specifications

SIMRIG SR3

Motion3-DOF — heave, pitch and roll
Maximum moving load250 kg
Travel70 mm
Maximum speed100 mm/s at maximum load
Positioning accuracy0.1 mm
System latency7 ms
ConnectivityUSB-C
Power supply1000 W, 100–240 V, 50–60 Hz
Package dimensions79 × 59 × 22 cm
Package weight22 kg

SIMRIG SBM

ChannelsTwo, independent left and right
Peak forceUp to 30 kg per side
Travel150 mm
ActuationLinear actuator
Roller height57–85 cm
Roller width80 mm (3 inch)
Strap attachmentHooks or loops
HarnessTwo-inch five-point, black, included
MountingTop of rear profile or side slot
Emergency stopIncluded, with link cable for SIMRIG motion systems
SoftwareSIMRIG Control Center
ConnectivityUSB-C
Power supply120 W, 100–240 V, 50–60 Hz
Package dimensions79 × 59 × 22 cm
Package weight12 kg

Good to know

The details, before you ask.

Do I need two computers or two apps?

No. Both systems connect over USB to the same PC and are controlled by SIMRIG Control Center.

How do the emergency stops work together?

The SBM ships with an emergency stop link cable for SIMRIG motion systems, so one press stops both.

Can I buy one now and add the other later?

Yes. Each system works standalone, and SIMRIG Control Center picks up the second one when you connect it.

How is it delivered?

As two packages, around 22 kg and 12 kg. Use the DHL Express or UPS app to schedule a time that fits.

Where is it made and shipped from?

Assembled and tested in Sweden, with parts from around Europe. Shipped directly from Sweden to your house.

Something we did not answer? Ask us

SIMRIG SR3 + SBM

The complete SIMRIG experience.

  • Four actuators, one per corner.
  • Two belt channels, left and right.
  • One software, one telemetry stream.
  • Five-point harness included.
Upcoming product

SR3 motion system + SBM belt tensioner

€ 5 350.00inc. VAT (25 %) · Sweden

€ 7 250.00 Save € 1 900.00

14-day returns · 3-year guarantee · UPS or DHL Express
