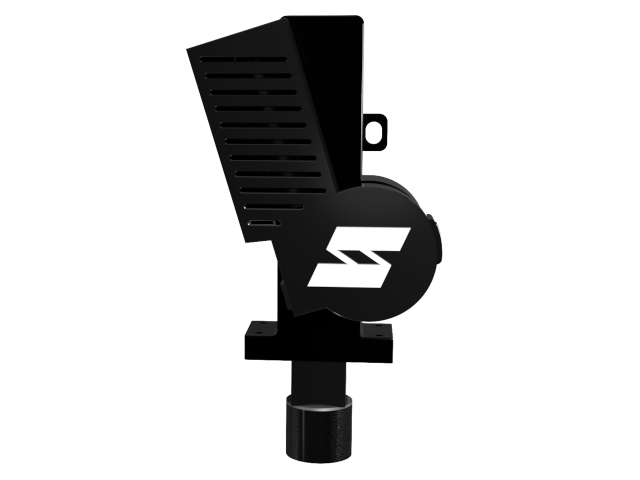

THE SIMRIG SR1

The SIMRIG SR1 is a powerful 3-DOF motion system. Built and developed in-house with a simple goal: ease-of-use and affordability.

The system achieves heave, roll, and pitch, using four actuators mounted at the corners of your aluminium rig. It reacts to accelerations by tilting the rig in any direction. The system reacts to bumps and curbs by moving up and down.

The SIMRIG SR1 connects to your PC through a USB-cable. It also connects to your favorite racing simulator through our Control Center.

HEAVE

Heave is motion up and down. With four actuators SIMRIG SR1 will lift your entire rig. Feel the curbs and the imperfections in the track. Notice carefully crafted details in the asphalt never before experienced.

PITCH

Pitch is rotation forwards and backwards. SIMRIG SR1 tilts your rig backwards during acceleration and forwards while braking. Feel the braking force instead of relying solely on the position of your foot.

ROLL

Roll is rotation left and right. While cornering SIMRIG SR1 tilts your rig sideways depending on direction. Fell the forces as your car is pushed around the corner.

PERFORMANCE

The SIMRIG SR1 achieves these numbers during max load with all four actuators mounted in a square.

Up to

6°

Pitch/Roll

Up to

70mm

Travel

Up to

100mm/s

Speed

TECH SPECS

The SIMRIG SR1 is a powerful and accurate system that attaches to most aluminium profiles. It interfaces with your PC using USB. The included power supply operates around the world.


Max load 175 kg (including driver and rig)
Travel 70 mm
Speed 100 mm/s (at max load)
Accuracy 0.1 mm
Latency 7 ms
Power 500 W
Interface USB 2.0 (Mini-B)
OS Windows 10
Mounting Aluminium rig 20/60, 40/40, 40/80 mm

MORE INFORMATION

New to motions systems? Read more in our introduction to motion systems.

SIMRIG Control Center

SIMRIG Control Center is responsible for managing the SIMRIG SR1 motion system. It extracts telemetry data from your favorite simulator and converts it into motion commands for the SIMRIG SR1.

The software allows you to tweak the settings for each vehicle until it is just right. You can adjust the amount of pitch during acceleration, the amount of roll while cornering, among many other things. These settings are automatically stored in a unique profile for each vehicle.

Once configured, simply start the SIMRIG Control Center, and enjoy the motion system. Profile selection is automatic.

See the documentation for more information.

Minimum System Requirements

Operating System
Windows 10 (x86 or x64)
Processor
A modern Intel i5 or equivalent
Runtime
.NET 4.6.1 and Visual C++ Redistributable 2017 for x86

SIMRIG Control Center is a lightweight program. It does not require much from your computer. However, it runs concurrently with demanding simulator software that require a significant amount of compute power. Your computer must be powerful enough to run the simulator at a constantly high frame rate while also running SIMRIG Control Center.

Supported Games

These simulators are currently supported, with more on the way.

  • Assetto Corsa
  • Assetto Corsa Competizione
  • DiRT Rally
  • DiRT Rally 2.0
  • F1 2017
  • iRacing
  • Live for Speed
  • Project CARS
  • Project CARS 2
  • Race Room Racing Experience
  • rFactor2
  • Richard Burns Rally
  • SimBin’s GT Legends
  • SimBin’s GTR2
  • SimBin’s Race
  • SimBin’s RACE 07

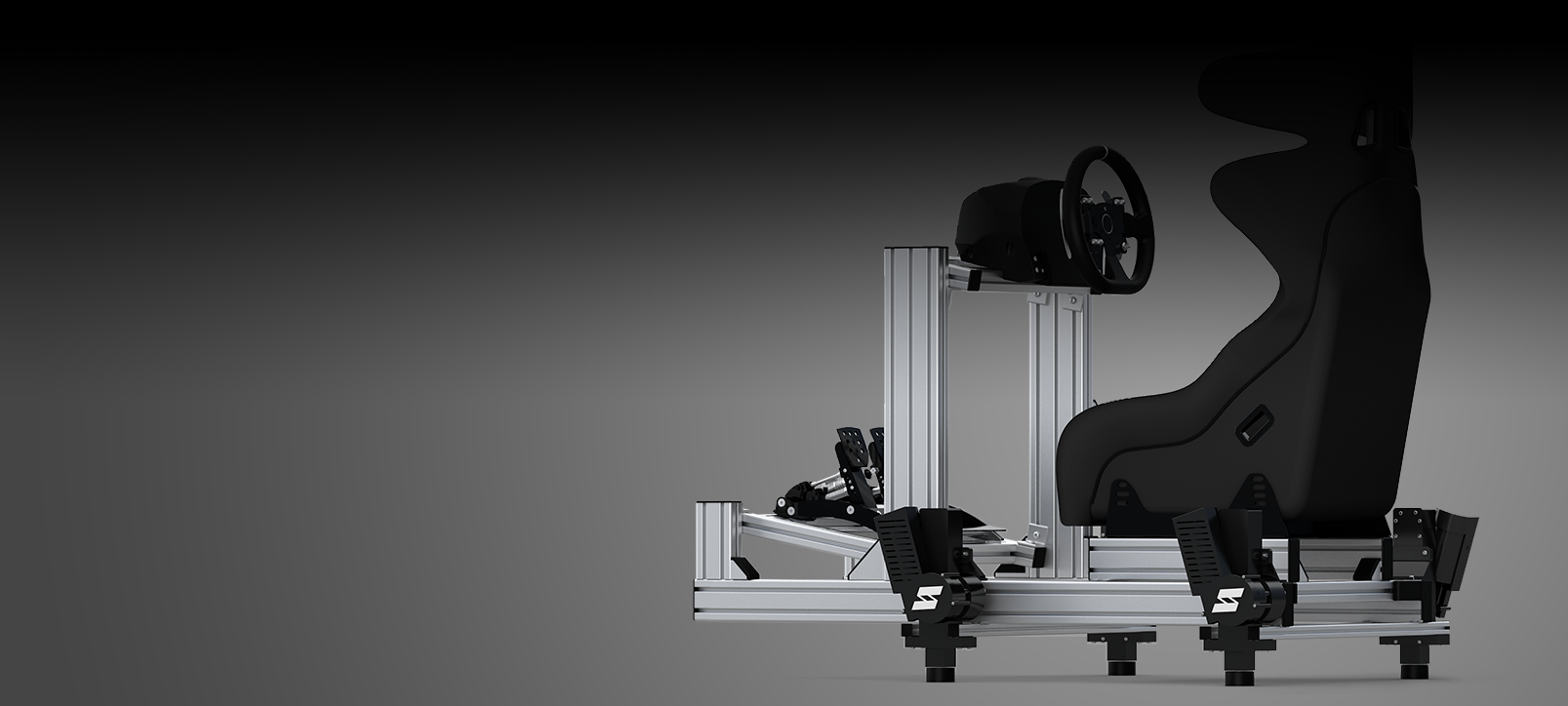

Mounting Options

SIMRIG SR1 is compatible with most aluminum rigs built using 20x60, 40x40, and 40x80 mm aluminum extrusions. Provided that the rig is not too heavy or too wide. Rigs with 40x160 extrusions are often too heavy and therefore not suitable for SIMRIG SR1.

Four 20x20 mm aluminum profiles and four plastic connectors are required to attach SIMRIG SR1 to an aluminum rig. These are included when your order a system.

The four 20x20 mm aluminum profiles are mounted in pairs. Two at the front of the rig and two at the back. Each pair holds two SIMRIG SR1 actuators. See assembly instructions for more details.

The plastic connects are specifically designed to attach to either 20x60, 40x40, or 40x80 mm aluminum profiles. These profiles differ in height and therefore require a matching connector. Please specify which rig you intend to use while ordering.

Maximum Load

For best performance, longevity, and user experience, the maximum load is set to 175 kg. The maximum load includes the SIMRIG SR1 motion system, the rig, the driver, other peripherals, and additional weight actuated by the SIMRIG SR1 motion system.

When the SIMRIG SR1 is attached to a lightweight rig, such as the SRD-Racer V1 (it only weighs 25 kg with motion system) then there is about 150 kg left for driver, seat, and peripherals.

Noise

A large rubber pad is attached to the bottom of each actuator. This keeps the system stationary and absorbs vibrations. However, the system is not completely silent. The noise level depends greatly on your floor. On a wooden floor the noise level is comparable to a normal conversation. On a concrete floor in a busy room the system appears completely silent.

Where to buy

You can order a SIMRIG SR1 motion system from us. Order now.

You can also order a SIMRIG SR1 motion system with compatible rig and seat from our friends at Swedish Rig Designs.

More Questions?

Feel free to contact us if your have more questions!
