SIMRIG SR3

The SIMRIG SR3 has come to life by the means of continuous improvement and customer feedback. Five years, that's how long it has taken to design the SIMRIG SR3. All that we learned over the years by designing, manufacturing, and using our products is represented in the SIMRIG SR3. Many of it's very best design features have been carried back to the SIMRIG SR1 and SR2.

What sets the SIMRIG SR3 apart is its ability to handle a substantial load capacity. Responding to the community's request for a system that can support heavier setups, the SIMRIG SR3 boasts a total load capacity of 250 kg. This significant improvement opens up new possibilities for users to customize their rigs with heavier seats, additional peripherals, and more, without compromising on performance.

Installation of the SIMRIG SR3 is a straightforward, plug-and-play process, designed to get you up and racing with minimal downtime. The package includes everything needed for a complete setup: actuators, the ECU, a power supply, and all necessary cables and hardware. It also comes with the SIMRIG Control Center software, which is the interface through which users can customize their motion feedback to match each vehicle's unique characteristics across all major simulation titles.

Available from 3950 excl. VAT

Order now   Software   User manual

Mounting

The SIMRIG SR3 is compatible with most aluminium extrusion rigs. We provide off-the-shelf solutions for the most common sizes: 40x40, 80x40, 120x40, 160x40 mm, and others. More sizes are available on request.

With the introduction of the SIMRIG SR3 we are also adding a new mounting system: the EasyBracket. It is now possible to mount the actuators directly to the sides of an aluminium extrusion rig. The EasyBracket comes pre-attached to the actuator, allowing for easy and quick installation.

All actuator cables are now black, making them easier to hide under the rig.

See documentation for more details. Don't hesitate to contact us if you have questions regarding your rig.

Performance

At its core, the SIMRIG SR3 is powered by industrial-grade motors, ensuring robustness and longevity. The system can actuate up to 250 kg. This includes the rig, the driver, and peripherals. The necessary power is seamlessly supplied by a fan-less 1000 W power supply; that connects to a normal household wall socket.

Despite its powerful performance, the SIMRIG SR3 maintains a compact footprint. The actuators are designed to attach directly to your rig, while the ECU is compact enough to fit neatly under your seat. The power supply can be conveniently placed next to your computer, ensuring that the SIMRIG SR3 enhances your racing setup without imposing on your space.

The SIMRIG SR3 is not just about raw performance; it's about enhancing the user experience. It comes with the SIMRIG Control Center software, which is optimized to remove undue latency. The system latency is negligible at only 7 milliseconds.

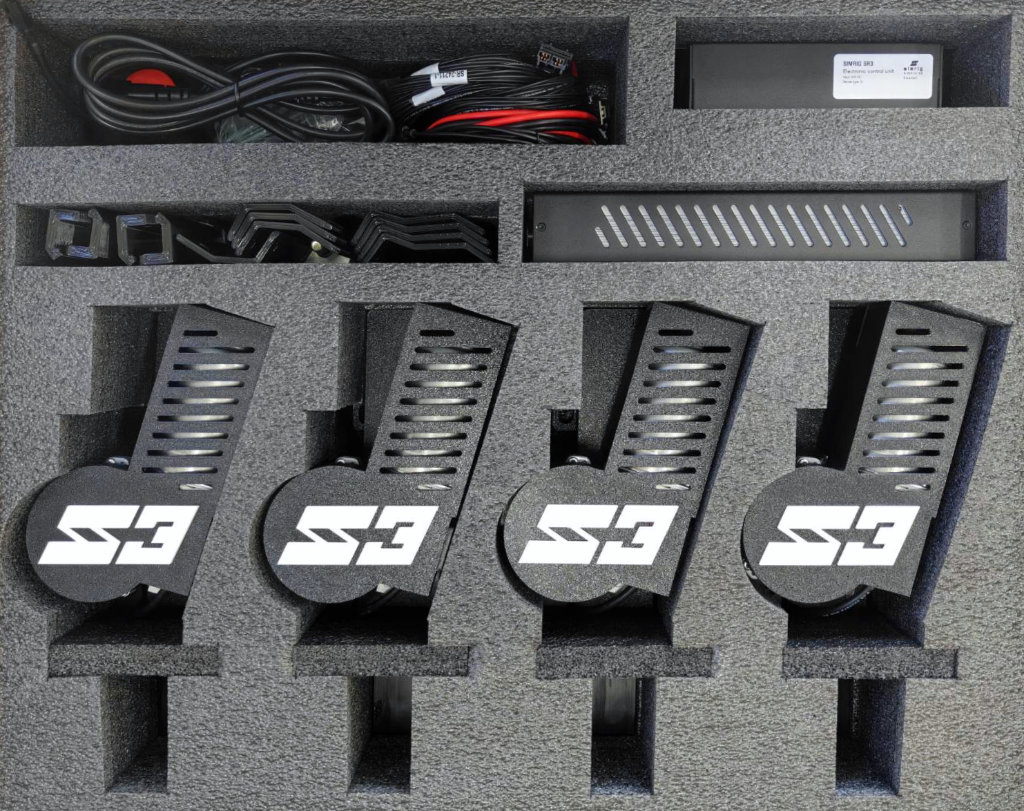

In the box

A complete motion system:

  • 4x SIMRIG SR3 Linear Actuator
  • 1x SIMRIG SR3 Electronic Control Unit
  • 1x 1000W Power Supply (100-240 V at 50-60 Hz)
  • 1x Emergency Stop
  • 4x Linear Actuator Cable (0.8m)
  • 1x Power Cable for ECU (2m)
  • 1x Power Cable (C13)
  • 1x USB Cable (3m)
  • 1x SIMRIG Control Center (download)
  • Assorted screws and T-nuts

And mounting brackets for your rig.

Reviews

Gamereactor

This is a review of the SIMRIG SR2 by Gamereactor (EN). The review is also available in Swedish (SE).

RON Reviewt - German

This review by RON Reviewt of the SIMRIG SR2 is in German with English subtitles. Watch on YouTube.

RON Reviewt - German

This review by RON Reviewt of the SIMRIG SR2 is in German with English subtitles. Watch on YouTube.

Serial Driver - French

This review by Serial Driver of the SIMRIG SR2 is in French with English subtitles. Watch on YouTube.

Technical specification

Max load *1
250 kg
Travel
70 mm
Speed
100 mm/s (at max load)
Accuracy
0.1 mm
Latency
7 ms
Power *2
1000 W
Interface
USB 2.0 (Mini-B)
Operating system
Windows 10/11 (64-bit)
Mounting *3
Aluminium rig 40x40, 80x40, 120x40, 160x40 mm and others
(80x40 profiles are sometimes called 80x20 in United States)
Cooling *4
Automatic fan
Emergency stop
Included
Package dimensions
74 cm x 58 cm x 19 cm
Package weight
22 kg
  1. Including driver and rig
  2. Power supply operates around the world (100-240 V, 50/60 Hz)
  3. See documentation for details regarding mounting options
  4. Fan actives only when necessary

Software

SIMRIG Control Center

SIMRIG Control Center is included with all our motion system products. It is responsible for managing the motion system while extracting telemetry data from your favorite simulator and converting it into motion.

More information

VR Motion Compensation

SIMRIG Control Center includes native support for VR motion compensation on OpenVR and OpenXR. Motion compensation keeps your head stationary in VR while the rig moves with the car.

Supported Simulators

These simulators are currently supported, with more on the way. Most are supported on PC but only some are available on console. See complete list in documentation.

Show complete list

  • American Truck Simulator
  • Assetto Corsa
  • Assetto Corsa Competizione
  • Automobilista
  • Automobilista 2
  • BeamNG.drive
  • DiRT 4
  • DiRT Rally
  • DiRT Rally 2.0
  • Euro Truck Simulator 2
  • Digital Combat Simulator (DCS)
  • F1 2017
  • F1 2018
  • F1 2019
  • F1 2020
  • F1 2021
  • F1 22
  • F1 23
  • Forza Horizon 4
  • Forza Horizon 5
  • Forza Motorsport 7
  • Gran Turismo Sport
  • Gran Turismo 7
  • GRID 2019
  • GT Legends
  • GTR2
  • iRacing
  • KartKraft
  • Le Mans Ultimate
  • Live for Speed
  • Microsoft Flight Simulator 2020
  • Microsoft Flight Simulator X
  • NoLimits 2
  • Project CARS
  • Project CARS 2
  • Project CARS 3
  • RACE 07
  • Race Room Racing Experience
  • Race
  • rFactor2
  • Richard Burns Rally
  • WRC 7
  • WRC 8
  • WRC 9
  • WRC 10
  • EA SPORTS WRC
  • X-Plane

More information

Software

All SIMRIG motion systems includes our SIMRIG Control Center. It supports all major simulation titles. It runs on 64-bit Windows.

Noise

The sound-level of the SIMRIG motion system is very low. A large rubber pad is attached to the bottom of each actuator. This keeps the system stationary and absorbs vibrations. Furthermore, the power supply is fan-less and the ECU fan only runs when necessary.

Power supply

The power supply operates around the world. It works with 100-240 V at 50/60 Hz.

A suitable C13 power cable is included for your region.

More questions?

Feel free to contact us if your have more questions!

Where to buy

Within Europe you can order a SIMRIG motion system from us. Order now.

You can also order a SIMRIG motion system with compatible rig and seat from our friends around the world.

Mounting options

The SIMRIG motion systems mount to almost any aluminium extrusion rig. Off the shelf solutions are available for the common sizes 40x40, 80x40, 100x40, 120x40, and 160x40 mm. Others are available on request. See documentation for more details. Don't hesitate to contact us if you have questions regarding your rig.

More information

At checkout there are two mounting options to choose from: 20x20 profiles and EasyBrackets.

20x20 profiles

Four 20x20 profiles are placed underneath the rig. These form a base to which the motion system attach. Available in black and silver. Maximum rig width 620 mm.

EasyBracket

Four CNC-milled aluminium parts are pre-attaches to the motion system. The motion system mounts directly to your rig. No maximum rig width. Suitable for 40x80 rigs and larger.

Product selection guide

The SR1, SR2, and SR3, motion systems differ by load capacity. They all share the same software and mounting systems. Use the following recommendations when choosing between the three versions:

SR1: The driver weight is below 80 kg and the aluminium rig is a 40x40 or 40x80

SR2: The driver weight is below 120 kg and the aluminium rig is 40x80, 40x100, 40x120 or 40x160.

SR3: The driver weight is above 120 kg and the aluminium rig is 40x120 or 40x160

To finalize your choice, add the weight of all your accessories, the rig, and yourself. Then compare your total weight to the maximum load capacity of our motion systems.
