20×20 mm profiles
Four 20×20 mm profiles mount underneath the rig and form a base for the motion system. Available in black and silver. Maximum rig width: 620 mm.
In stock
Ships in 2–3 days

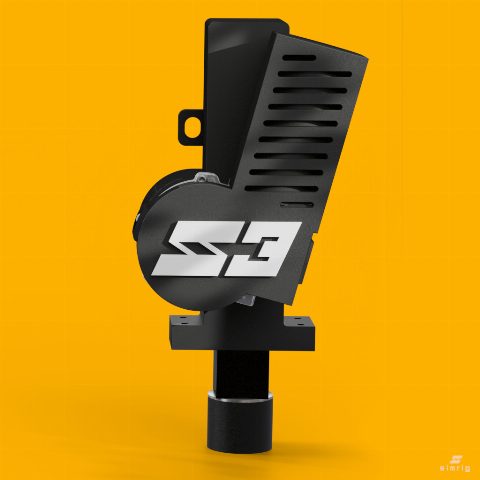

SIMRIG SR3
Our most responsive and detailed 3-DOF motion system, developed for sim racers who want the highest level of motion performance.
SIMRIG Control Center included. Rig and mounting solution not included.
€ 5 187.50
inc. VAT (25 %) · Sweden
Configure this system
Choose your rig and mounting solution. The configurator adds the parts required for your installation before checkout.
- Shipping is calculated at checkout for your country.
- 14-day returns · 3-year guarantee
- Delivered by UPS or DHL Express
Why SR3
SR3 is the highest-performance motion system in the SIMRIG range. Optimized internal components give it greater responsiveness and finer control of smaller movements, allowing more of the detail in the simulator telemetry to reach the driver.
The result is clearer surface detail, more immediate response to changes in the car and a more refined overall motion experience. The system is also notably quiet in operation.
Choose SR3 when maximum motion performance is the priority — not only when additional load capacity is required.
SR3 shares the same 70 mm travel and up to 100 mm/s maximum speed as SR1 and SR2. Its advantage is how precisely and responsively it delivers that motion.
Technical specifications
| Motion | 3-DOF — heave, pitch and roll |
| Maximum moving load | 250 kg |
| Travel | 70 mm |
| Maximum speed | 100 mm/s at maximum load |
| Positioning accuracy | 0.1 mm |
| System latency | 7 ms |
| Power supply | 1000 W, 100–240 V, 50–60 Hz |

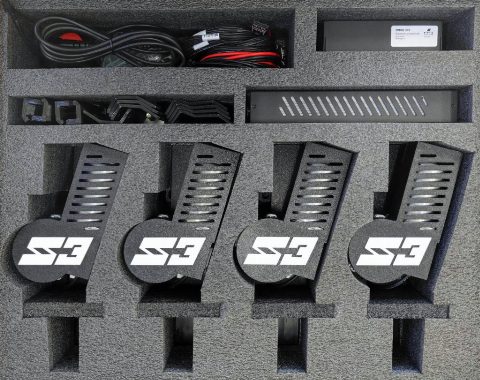

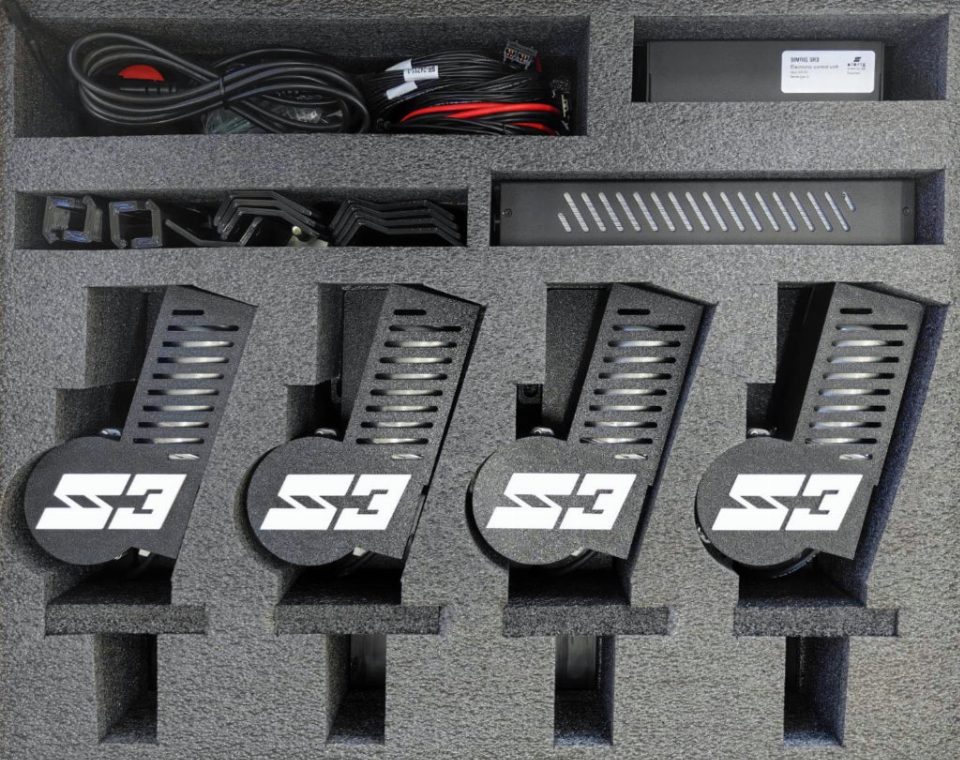

What's in the box
- 4x SIMRIG SR3 Linear Actuator
- 1x SIMRIG SR3 Electronic Control Unit
- 1x 1000W Power Supply (100-240 V at 50-60 Hz)
- 1x Emergency Stop
- 4x Linear Actuator Cable (1m)
- 1x Power Cable for ECU (2m)
- 1x Power Cable (C13)
- 1x USB Cable (3m)
- 1x SIMRIG Control Center (download)
- Assorted screws and T-nuts

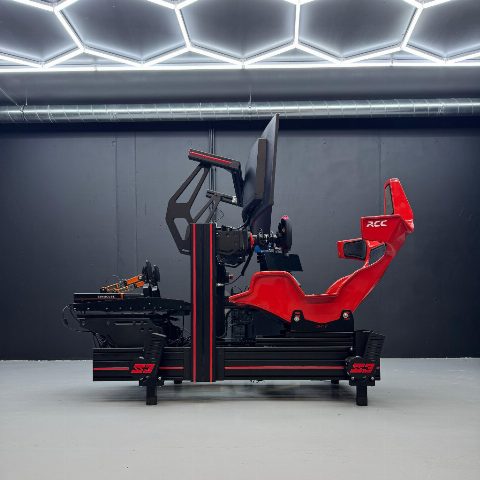

Rig compatibility & mounting

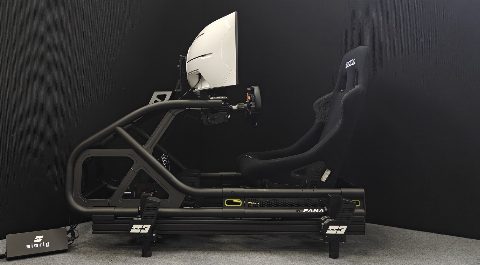

SR3 fits most aluminium profile rigs and selected tubular rigs using assembly kits matched to the specific rig. EasyBracket provides direct mounting for 40×80 mm aluminium profiles and larger. For compatible rigs up to 620 mm wide, a 20×20 mm under-rig mounting solution is also available.
EasyBracket
Four CNC-machined aluminium brackets mount the motion system directly to the rig. Suitable for 40×80 mm aluminium profiles and larger, with no maximum rig width.
SIMRIG Control Center included
SIMRIG Control Center reads telemetry from supported simulators, automatically detects the simulator and vehicle you are driving, loads the matching profile, and converts telemetry into motion in real time with no perceptible delay. Native OpenVR and OpenXR motion compensation is included.
Supported simulators
More than 60 supported titles across racing, rally, driving and flight simulation. Platform support varies by title.
Assetto Corsa
Assetto Corsa Competizione
Assetto Corsa EVO
Automobilista 2
BeamNG.drive
DiRT Rally 2.0
EA SPORTS WRC
Euro Truck Simulator 2
F1 25
Forza Horizon 5
Forza Motorsport 7
Gran Turismo 7
iRacing
Le Mans Ultimate
Microsoft Flight Simulator 2024
Project CARS 2
Project Motor Racing
RaceRoom Racing Experience
rFactor 2
Richard Burns Rally
Wreckfest 2
X-Plane 11 & 12
+ 41 more

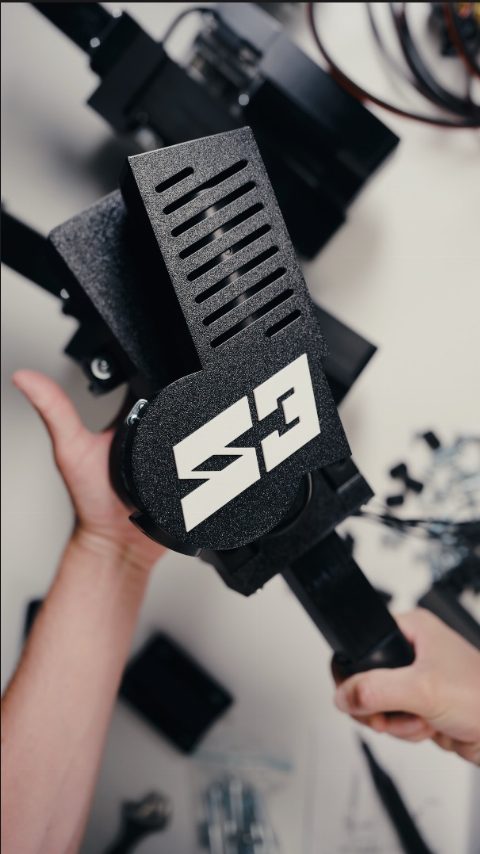

Tested and assembled in Sweden
Every SIMRIG motion system is assembled, tested and checked in Sweden before it leaves us.
Reviews
Independent reviews and build videos from the sim racing community. Non-English videos include English subtitles.
German
RON Reviewt
Full SR3 review in German, English subtitles.
French
SuperChicane
SR3 review in French, English subtitles.
English
Ryan's Road To Rally
Rally-focused review of the SR3.
French
Naga Racing
Naga Racing builds his ultimate sim racing setup around the SR3, in French.
French
Naga Racing
Naga Racing builds the ultimate PlayStation simulator with the SR3, in French.
Which one — SR1, SR2 or SR3?
Start by checking which systems can support the total moving weight of your simulator. If more than one system is compatible, choose based on the level of motion performance you want. SR2 and SR3 provide greater responsiveness and finer detail than SR1, while SR3 delivers the highest overall performance.
SR1
SR1 provides the complete SIMRIG 3-DOF motion experience and is a good choice for lighter simulator setups where maximum performance is not the primary requirement.
SR2
SR2 adds greater precision, responsiveness and detail. It is a strong all-round choice for sim racers looking for higher motion performance without stepping up to SR3.
SR3
SR3 delivers the best SIMRIG motion experience, with the highest responsiveness and the finest detail. Choose SR3 when maximum motion performance is the priority — not only when additional load capacity is required.
Maximum moving load is 175 kg for SR1, 225 kg for SR2 and 250 kg for SR3, including the driver, rig and all equipment that moves with the motion system.
Good to know
Noise
The sound level is very low. A large rubber pad under each actuator keeps the system stationary and absorbs vibrations. The power supply is fan-less, and the ECU fan only runs when necessary.
Power supply
Operates around the world: 100–240 V at 50/60 Hz. A C13 power cable for your region is included.
Feel free to contact us if you have more questions. Ask us
Frequently asked questions
How much can the SR3 move?
Up to 250 kg in total: the rig, the driver and everything mounted on it. Add the three up and compare with the maximum moving load when choosing a system.
Do I need a special power outlet?
No. The 1000 W power supply plugs into a normal household socket and runs on 100–240 V at 50/60 Hz, so it works anywhere in the world.
Is a rig included?
No. The motion system mounts on the rig you already have, one actuator in each corner. Most aluminium profile rigs and selected tubular rigs fit; the compatibility list in the documentation names the profiles and the brackets for them.
Which simulators are supported?
More than 60 titles across racing, rally, driving and flight simulation: iRacing, Assetto Corsa, Automobilista 2, rFactor 2, the F1 and WRC games, and many more. Platform support varies by title, with compatible PC, PlayStation and Xbox games supported. The complete list lives in the documentation and grows with every release.
Does it work in VR?
Yes. SIMRIG Control Center includes native motion compensation for OpenVR and OpenXR. It compensates for the physical movement of the rig, helping keep the virtual viewpoint stable while the simulator moves.
What is the difference between the SR1, SR2 and SR3?
All three provide full 3-DOF motion with 70 mm travel and up to 100 mm/s speed, and all three use SIMRIG Control Center. Moving from SR1 to SR2 and SR3 adds responsiveness and finer detail, with SR3 delivering the highest level of motion performance. The maximum moving load — 175, 225 and 250 kg — decides which systems fit your setup.
Is the software included?
Yes. SIMRIG Control Center comes with every motion system at no extra cost. A serial number, printed on the ECU box, is all you need to download it.
Something we did not answer? Ask us
